BLS-2209, Brushless Digital, High Voltage, High Torque, High Speed, Titanium Gears
Car. Airplane. Heli (EP / Gas Engine)
1/6, 1/8, 1/10 Buggy / Truggy, Crawler, Monster
| Electrical Specification (Function Of The Performance) | |
| Torque at 6.0V | 29.3 kg-cm / 407.0 oz-in |
| Torque at 7.4V | 33.5 kg-cm / 465.3 oz-in |
| Speed at 6.0V | 0.17 sec/60° at no load |
| Speed at 7.4V | 0.14 sec/60° at no load |
| Apply Environmental Condition | |
| Operating Voltage Range | 4.8V to 8.5V (2 cell Li-Po / 6 cell Ni-MH Compatible) |
| Operating Temperature Range | -20°C ~ 60°C ( -4°F ~ 140°F ) |
|
Control Specification
|
|
| Dead Bend Width | 1us |
| Mechanical Specification | |
| Ball Bearing | Yes. Dual |
| Type Gears | Titanium Alloy Gear |
| Motor Type | Brushless Motor |
| Horn / Gear Spline | 25 Teeth (Same as Futaba) |
| Outline Drawing | |
| Weight (gram) | 66 g / 2.33 oz |
| Size (mm) | 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in |

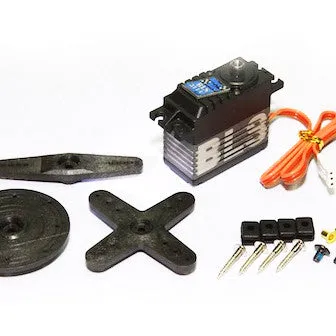

| Product Picture / Dimension Sketch | |
