DETAILS
Application
| Large Glider series, Aircraft & 1/12th EP Car |
Specifications
| Torque At 4.8V | 6.7 kg-cm / 93 oz-in |
| Torque At 6.0V | 8.3 kg-cm / 115.2 oz-in |
| Torque At 7.4V | 10.2 kg-cm / 141.7 oz-in |
| Torque At 8.4V | 11.6 kg-cm / 161.1 oz-in |
| Speed At 4.8V | 0.084 sec / 60° |
| Speed At 6.0V | 0.068 sec / 60° |
| Speed At 7.4V | 0.055 sec / 60° |
| Speed At 8.4V | 0.048 sec / 60 |
Power Supply
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Fe & Li-Poly Compatible ) |
Mini Servo
| Control System | Digital Controller / Frequency：333Hz / Neutral：1520us |
| Dead Band Width | 0.001ms ( 1us ) |
Mechanical Specifications
| Ball Bearing | Dual |
| Gear | All Metal Gears |
| Motor | Racing Coreless Motor |
| Horn / Gear Spline | 25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) | 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in |
| Weight (gram) | 34.0 ± 1 grams / 1.19 oz |

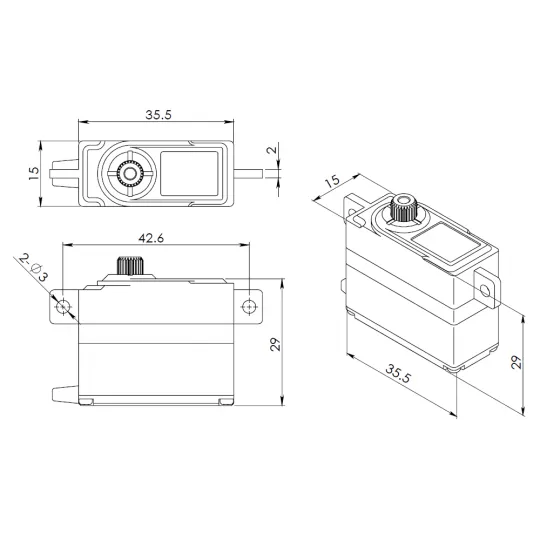

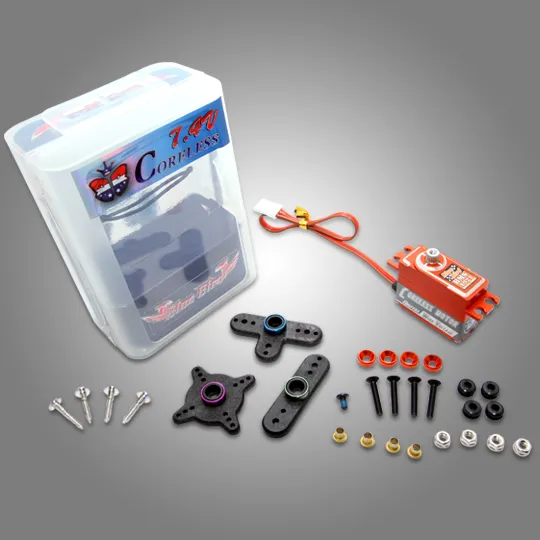

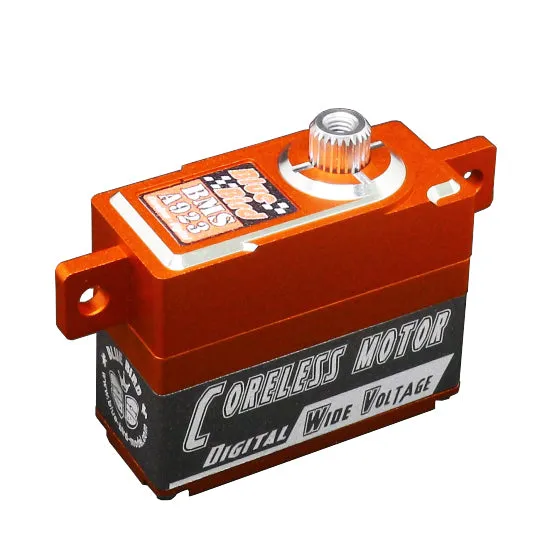

| Product Picture / Dimension Sketch |
