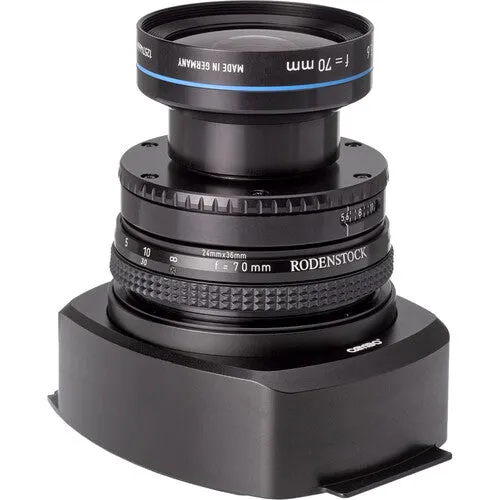

Aperture Only (WRA-2070)
The WRA-2070 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/70 HR Digaron-W lens with Aperture Only mounted in a helical focussing mount.
Shortest focal distance to object: 0,9 mtr
Image circle of lens at f/11: 100mm
Optical Movements:
CCD size 37x37mm: 28/28mm
CCD size 33x44mm: 28/25mm
CCD size 36x48mm: 26/23mm
CCD size 37x49mm: 25/22mm
CCD size 40x54mm: 22/19mm
CCD size 36x56mm: 23/19mm
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
This product is compatible with the PhaseOne XT system / No data transfer

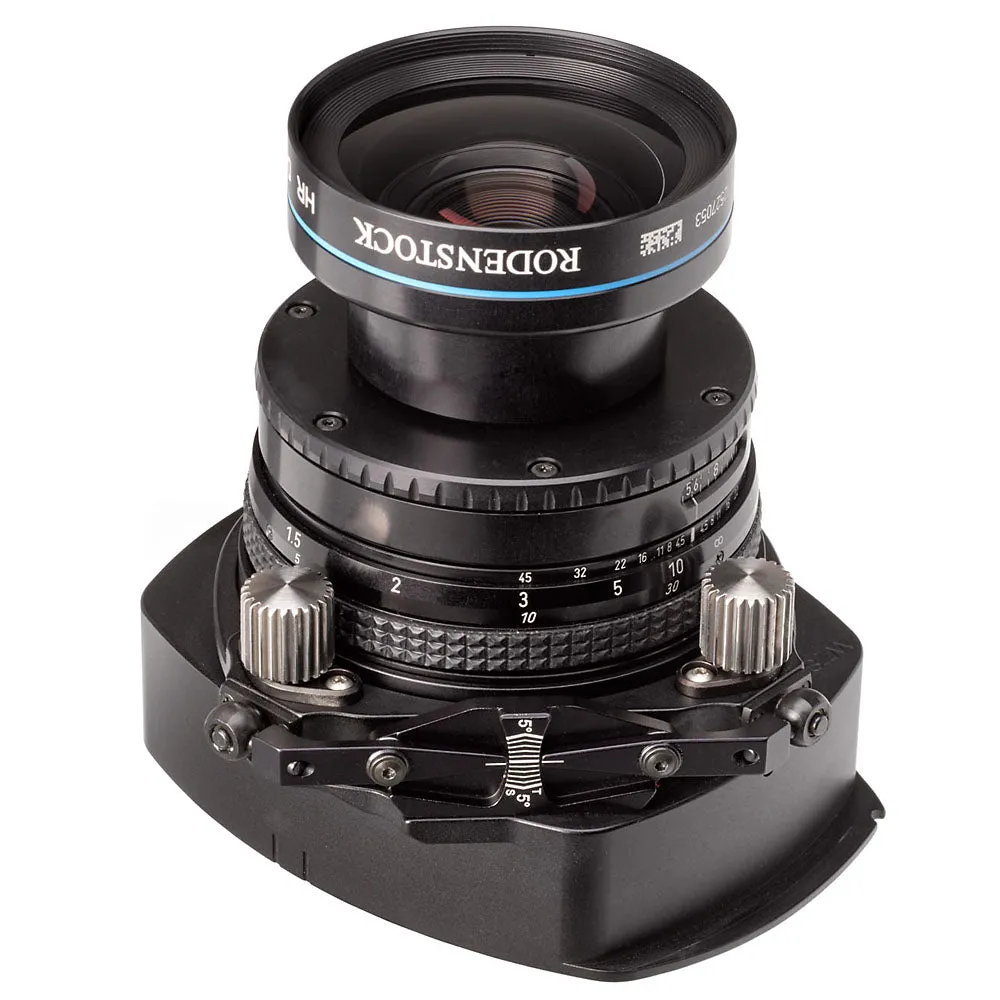

Tilt / Swing Aperture Only (WTSA-870)
The WTSA-870 Lenspanel is dedicated to the use with Digital Backs with sensor activated electronic shutter and has a Rodenstock 5.6/70 HR Digaron-W lens with Aperture Only mounted in a helical focussing mount.
This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination. The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
Shortest focal distance to object: 0,9 mtr
Image circle of lens at f/11: 100mm
Optical Movements:
CCD size 37x37mm: 28/28mm
CCD size 33x44mm: 28/25mm
CCD size 36x48mm: 26/23mm
CCD size 37x49mm: 25/22mm
CCD size 40x54mm: 22/19mm
CCD size 36x56mm: 23/19mm
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
This product is compatible with the PhaseOne XT system / No data transfer

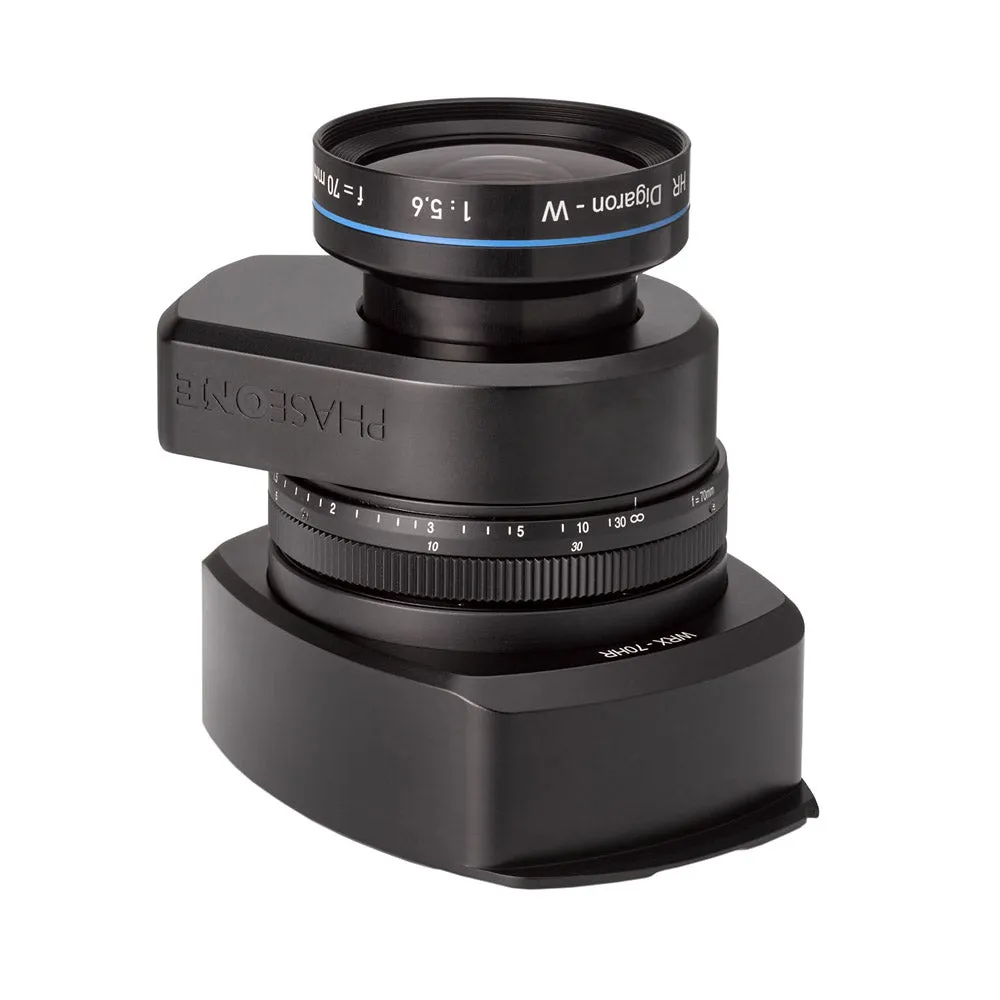

with Phase One X-Shutter (WRX-70)
The WRX-70 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5.6/70 HR Digaron-W lens with Phase One XShutter mounted in a helical focussing mount.
Shortest focal distance to object: 0,9 mtr
Image circle of lens at f/11: 100mm
Optical Movements:
CCD size 37x37mm: 28/28mm
CCD size 33x44mm: 28/25mm
CCD size 36x48mm: 26/23mm
CCD size 37x49mm: 25/22mm
CCD size 40x54mm: 22/19mm
CCD size 36x56mm: 23/19mm
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm

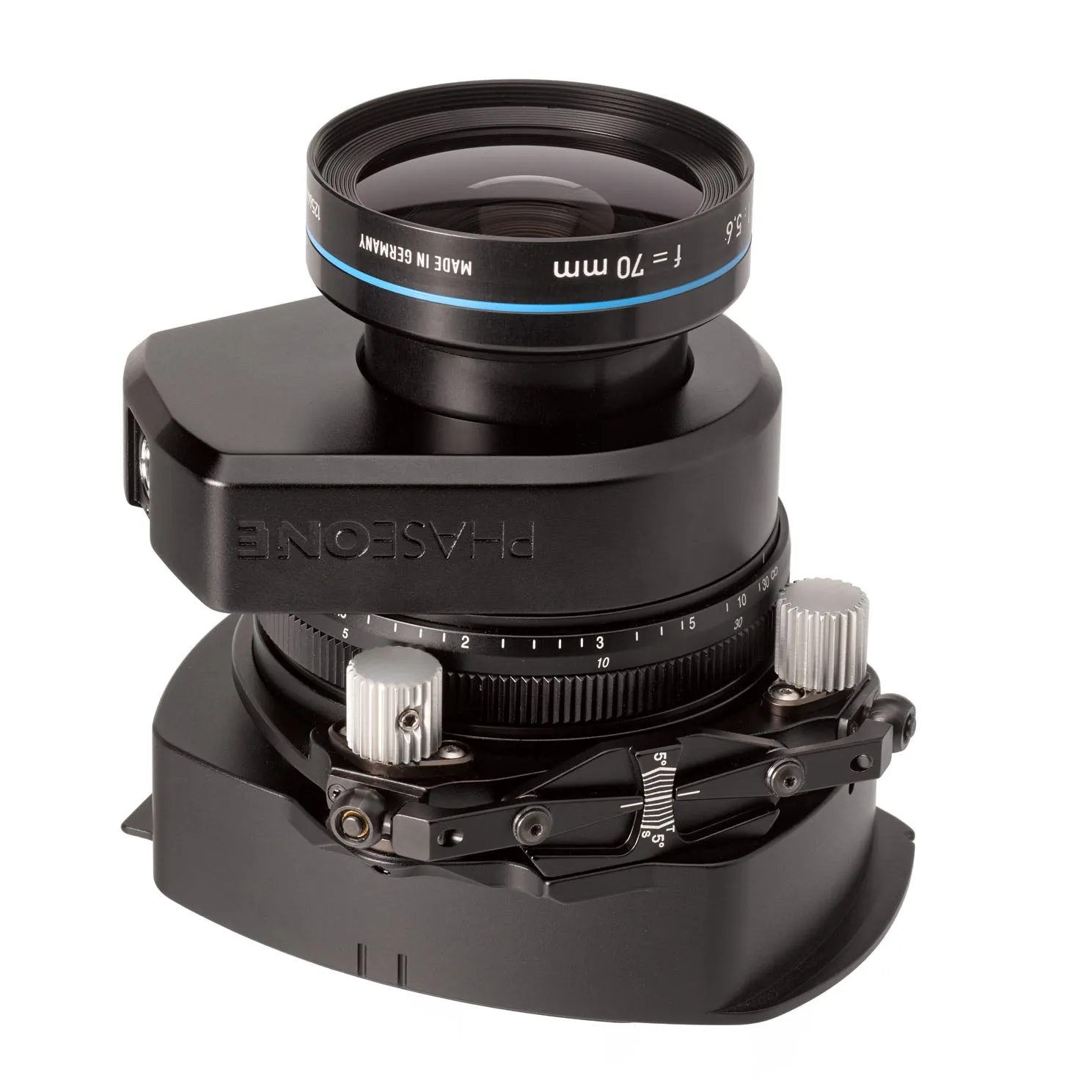

Tilt Swing Phase One X-Shutter (WTSX-70)
The WTSX-70 Lenspanel is dedicated to the use with IQ4 Digital Backs and has a Rodenstock 5.6/70 HR Digaron-W lens with Phase One X-Shutter mounted in a helical focussing mount. This lenspanel features an integrated tilt and swing mechanism which can be operated with two precise gear-driven knobs upto 5 degrees Tilt up and down and 5 degrees Swing left and right, while both swing and tilt can be set independently, separately but also in combination.
The movements have a clear and forced zero position where the parallel setting to the focal plane is guaranteed.
Shortest focal distance to object: 0,9 mtr
Image circle of lens at f/11: 100mm
Optical Movements:
CCD size 37x37mm: 28/28mm
CCD size 33x44mm: 28/25mm
CCD size 36x48mm: 26/23mm
CCD size 37x49mm: 25/22mm
CCD size 40x54mm: 22/19mm
CCD size 36x56mm: 23/19mm
Please note that some optical movements are larger than achievable due to mechanical limitation.
Camera Movements:
WDS: Up / Down / Left / Right: 34 / 26 / 20 / 20mm
WRS: Up / Down / Left / Right: 25 / 15 / 20 / 20mm
1600: Up / Down / Left / Right: 20 / 20 / 20 / 20mm
