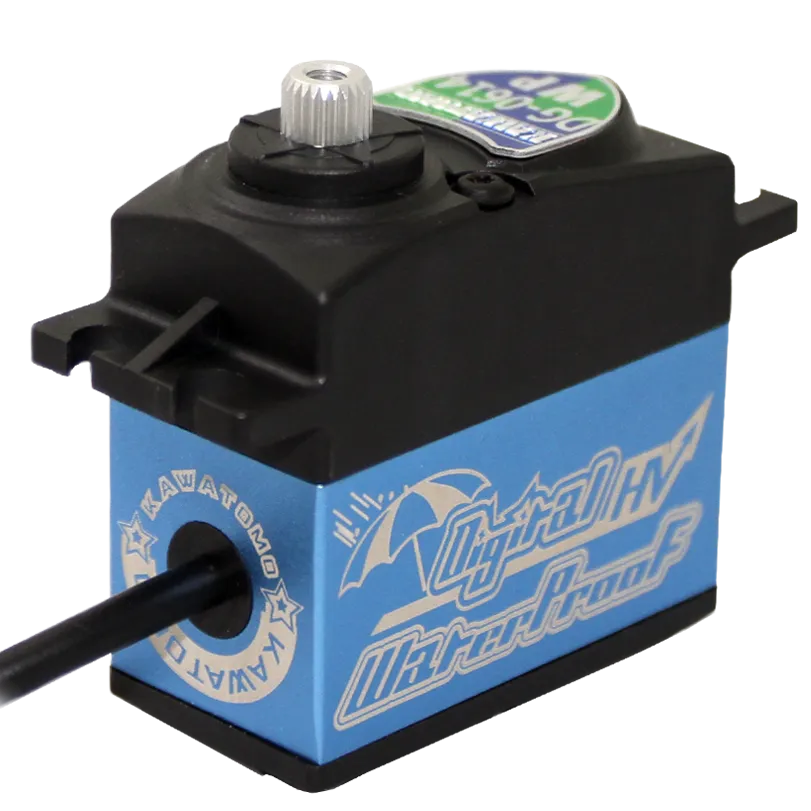

DG-0614WP, HV-Digital, Super Speed, Waterproof, Metal Gears
Waterproof to 1 meter of depth
IP=International Protection Code
6=Dust Tight/7=Immersion up to 1M
1/8, 1/10th Buggy, Truggy, Crawler & Boats (EP / Gas Engine)
| Torque At 6.0V |
11.9 kg-cm / 165.3 oz-in |
| Torque At 7.4V |
14.1 kg-cm / 195.8 oz-in |
| Speed At 6.0V |
0.07 sec / 60° |
| Speed At 7.4V |
0.06 sec / 60° |
Power Supply
| Operating Voltage Range |
6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe ) |
100% Water Proof (IP67)
| Control System |
Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) |
| Programmable Digital |
No |
Mechanical Specifications
| Ball Bearing |
Dual, Stainless steel |
| Gear |
All Metal Gears |
| Motor |
DC Carbon brushed Motor |
| Horn / Gear Spline |
25 Teeth ( Same as F-Type ) |
Physical Specifications
| Dimension (mm) |
40.6 x 20.6 x 39.7 mm / 1.6 x 0.81 x 1.56 in |
| Weight (gram) |
65 ± 1 grams / 2.29 oz |
| Product Picture / Dimension Sketch |
|
