DG-1220WP, HV-Digital, High Torque, Waterproof, Metal Gearsears
Waterproof to 1 meter of depth
IP=International Protection Code
6=Dust Tight/7=Immersion up to 1M
1/8, 1/10th Buggy, Truggy, Crawler & Boats (EP / Gas Engine)
|
Electrical Specification (Function Of The Performance)
|
||
| Torque At 6.0V | 16.5 kg-cm / 229.2 oz-in | |
| Torque At 7.4V | 19.7 kg-cm / 273.6 oz-in | |
| Speed At 6.0V | 0.14 sec / 60° | |
| Speed At 7.4V | 0.12 sec / 60° | |
|
Apply Environmental Condition
|
||
| Operating Voltage Range | 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe) | |
| Operating Temperature Range | -20°C ~ 60°C ( -4°F ~ 140°F ) | |
|
Control Specification
|
||
| Control System | Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) | |
|
Mechanical Specification
|
||
| Ball Bearing | Dual, Stainless steel | |
| Type Gears | All Metal Gears | |
| Motor Type | DC Carbon brushed Motor | |
| Horn / Gear Spline | 25 Teeth (Same as F-Type) | |
|
Outline Drawing
|
||
| Dimension (mm) | 40.6 x 20.6 x 39.7 mm / 1.6 x 0.81 x 1.56 in | |
| Weight (gram) | 65 ± 1 grams / 2.29 oz | |
|

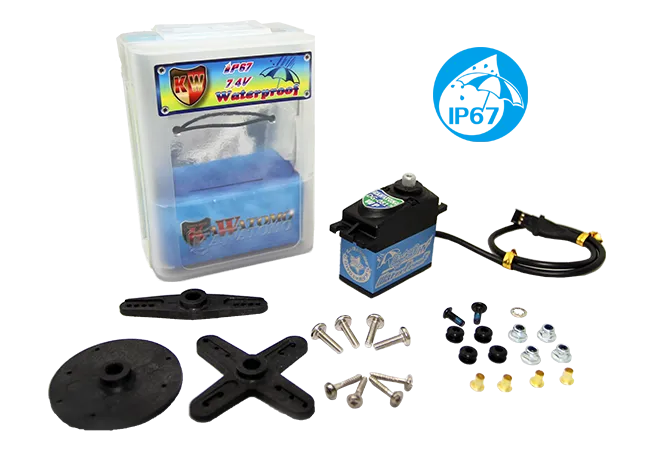

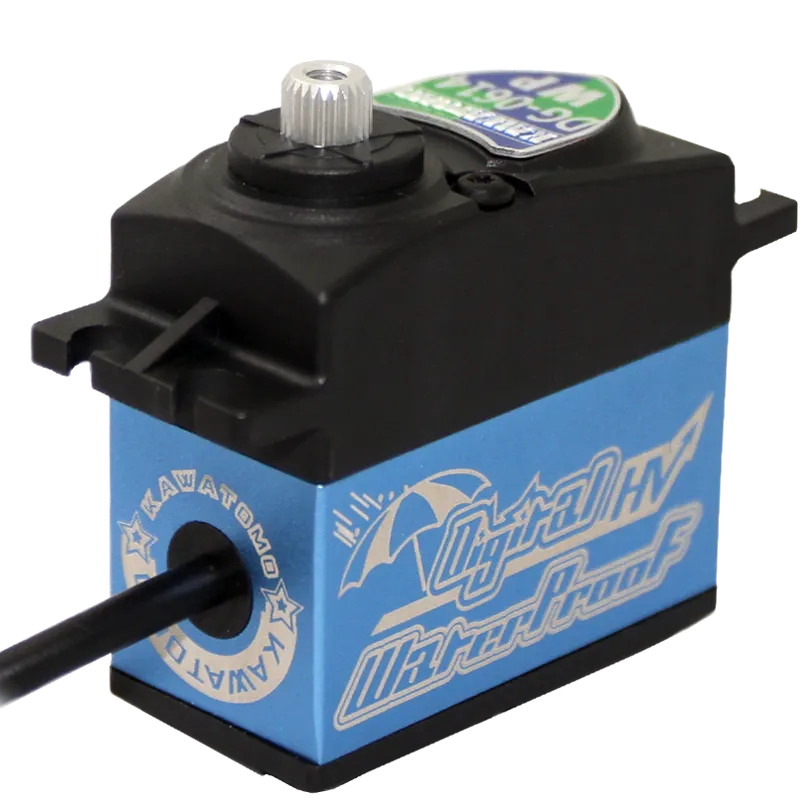

Product Picture / |
|
|
