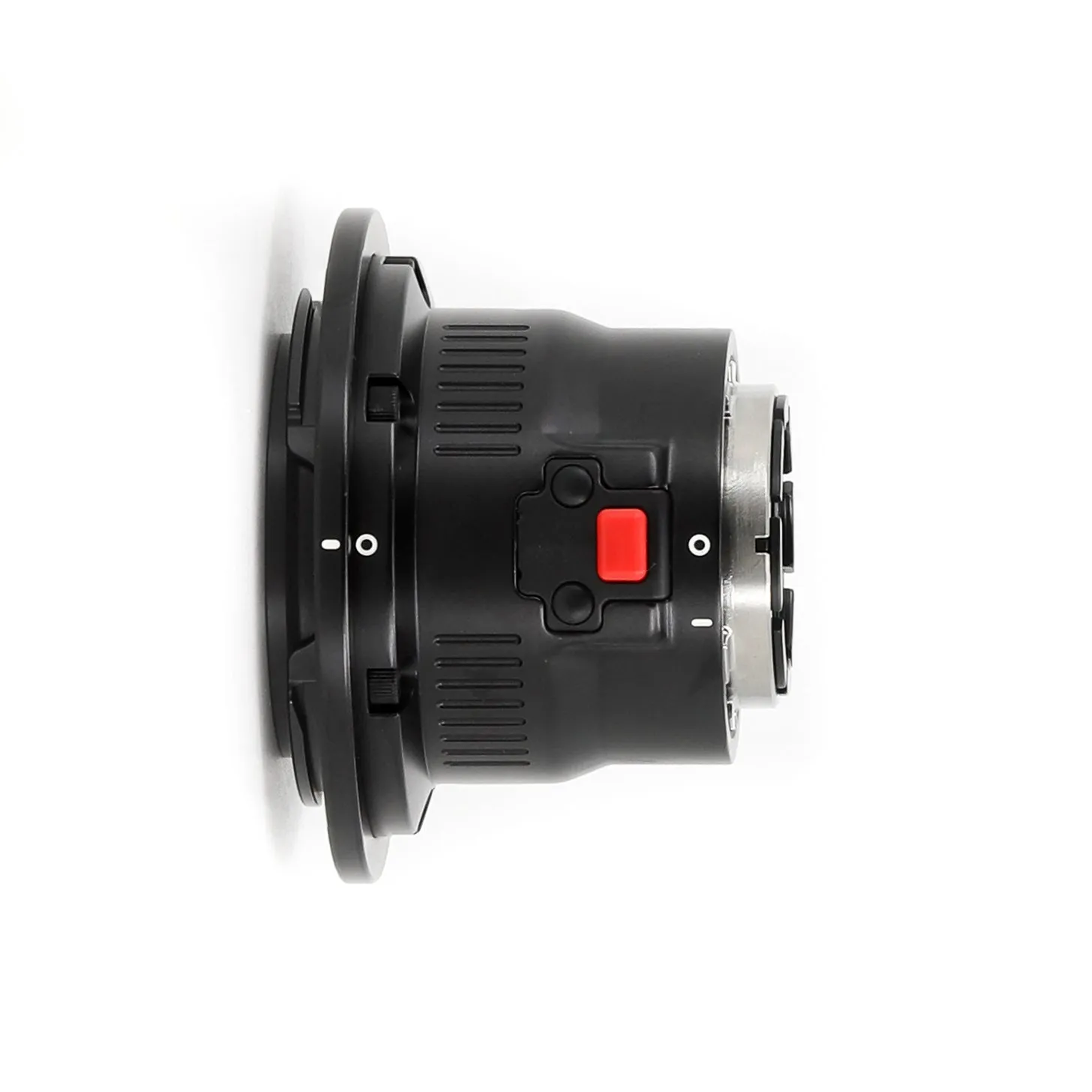

Focusing Unit
To ensure the best results across a range of cameras, three focusing units were designed and each unit is custom designed optically to work with the recommended primary lenses.
Nikon and Micro Four Thirds
Compatible lenses:
- Nikon AF-S VR Micro Nikkor 105mm f/2.8G IF-ED
- Olympus M.Zuiko Digital ED 60mm f2.8 Macro
Canon
Compatible lenses:
- Canon EF 100mm f/2.8L Macro IS USM
- Canon EF-S 60mm f2.8 Macro USM for APS-C
Sony
Compatible lens:
- Sony SEL90M28G FE 90mm F2.8 Macro G OSS
Technical Specifications
|
Focusing Unit |
Product Number |
Diameter x Length (mm) |
Weight in Air/Underwater
|
|
Nikon and Micro Four Thirds |
87201 |
96.0 X 83.4 |
728/490g |
|
Canon |
87202 |
96.0 X 71.4 |
592/390g |
|
Sony |
87203 |
96.0 X 66.9 |
558/370g |
Recommended Accessories:
- Flip Holder for EMWL Lens
- Padded Travel Bag for EMWL (Focusing Unit/Relay Lens/3x Objective Lenses)
- Shade for 130° Objective Lens
- Shade for 100° Objective Lens
- M67 Mount to EMWL Focusing Unit
- EMWL Bayonet Holder for 70mm Diameter Float Arm
- EMWL Bayonet Holder for 90mm Diameter Float Arm
- Strobe Mounting Brackets for EMWL Relay Lens
- M67 to Bayonet Mount Converter II
- M77 to Bayonet Mount Converter II
